Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Golden Bridge
  • Model Number: JQT-2200-C
  • Theory: Vacuum Pump
  • Structure: Single-stage Pump
  • Usage: Air Pump
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: electric
  • Pressure: High Pressure
  • Application: Aquarium Air Pump fish farm pond oxygen blower pump
  • product: Aquarium Air Pump fish farm pond oxygen blower pump
  • Factory: yes
  • Certificate: CE and ISO
  • brand: Golden Bridge
  • origin: shandong,China
  • package: carton box or as customers' requirement
  • 6.pressure: <20kPa
  • 7.dimension: 400*385*415mm
  • 8.Vacuum: -25kPa
  • 9.Voltage: 220v/380v

Packaging & Delivery

Packaging Details: wooden box

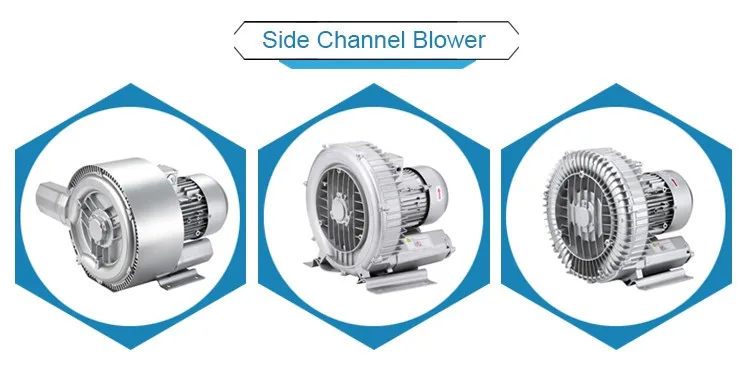

Aquarium Air Pump fish farm pond oxygen blower pump



Performance parameter







ModelJQT120JQT180JQT250JQT370JQT550JQT750JQT1100
Voltage220v/380v220v/380v220v/380v220v/380v220v/380v220v/380v220v/380v
50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz
Power(kw)0.120.180.250.370.550.751.1
Max Air flow(m3/h)212526313542607695115110130165210
Max vacuum (kpa)-5-6-6.5-8-10-12-11-13-12-13-14-16-18-19
Max pressire(kPa)7.5991112151215151818222227
Weight(kg)4.75.8912131420
Size(mm)248*198*244263*219*243265*228*248279*240*266294*288*315294*288*315332*328*358
ModelJQT1500JQT2200JQT3000JQT4000JQT5500JQT7500
Voltage220v/380v220v/380v220v/380v220v/380v220v/380v220v/380v
50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz
Power(kw)1.52.23.0 4.0 5.57.5
Max Air flow(m3/h)210255250280260310400450510600530570
Max vacuum (kpa)-18-19-22-26-25-26-32-33-36-38-38-40
Max pressire(kPa)252727293538404345475558
Weight(kg)252836406870
Size(mm)345*360*371400*385*415423*384*400400*420*470489*418*453450*145*461





Features:
1.Beautiful surface
2. Easy installation
3. Low noise level
4.No vibration
5. Pulsation-free discharge
6. Minimal maintenance
7. Higher pressure ratio
8. Cooler running bearings
9. Longer grease life
10. Simple maintenance
11. 100%oil-free air
12. Suitable for environmental protection
13. Small dimensions
14 continuous duty



Vortex pump use and maintenance

1. vortex pump should be placed in the more stable, and the surroundings should be clean, dry and ventilated.

2.vortex pump impeller rotation direction must be marked on the cover with the fan direction of the arrow.

3. vortex pump work, the working pressure shall not exceed 8kpa, so as not to produce too much heat pump and motor over current caused by pump damage.

4. vortex pump prohibited solids, liquids and corrosive gases entering the pump.

5.vortex pump out of gas across the filter and silencer device should be cleaned according to the situation timely to avoid blocking affect use.

6.vortex pump connection must be out of gas hose connection estuary (such as rubber tubes, plastic spring tube)

Factory

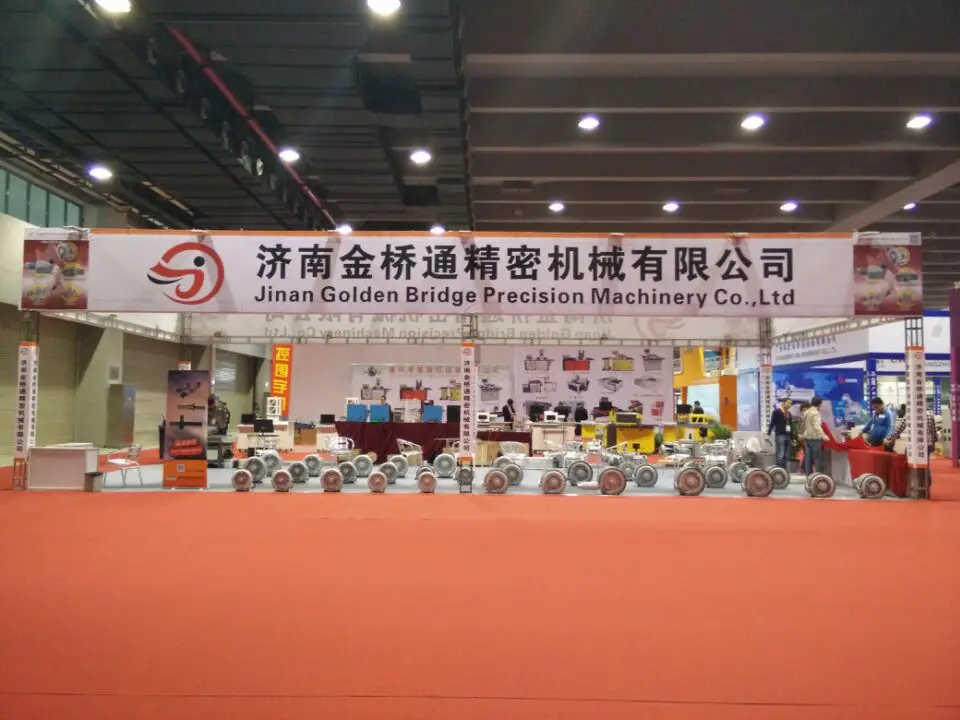

Exhibition



Certifications





When you place the order,pls note the following

1.pls leave me the message regarding the porformance data,such as voltage,frequency,Single or three and so on
   The more detailedness ,the better.
2.We can customize the ring blower for you to meet your voltage
3.If you have any doubt about the product,pls do not hesitate to tell me


FAQ



1.What type blower you have?

We have double stage and single stage blower

2.Is  the blower oilless?

Yes.It is

3.Do you have factory?

Yes,we have.Factory from 1999

4.Do you have other type pump?

We have dry vane vacuum pump.you can check our company website.

5.What about the warranty?

1 Year except the motor

6.What accessory do you have?

We have air filter,relief vaves,silencer,solenoid valves etc.
